Milling

Kaast provides milling in a myriad of
configurations briefly described below.  Please
contact us with your application.

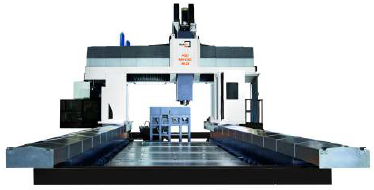

Moving Gantry Machining Center

PSD Mill CNC
CNC Fanuc 18i MB
Tool Magazine 32 way, 40, 60, 80, 120 optional
6’x20’ (118”) to 17’x20’
Rigid frame, movable uprights and heavy crossbeam
permit heavy cuts.

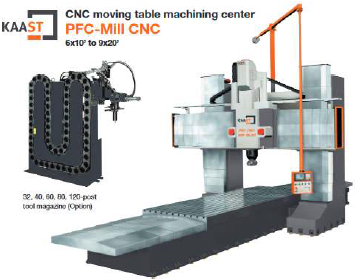

Moving table M/C

PFC-Mill CNC

4x7’ to 6x17’ or 6x10’ to 9x20’
Fanuc CNC 0i-MC
ATC 24 tools
Up to 120 tools optional
Renishaw OMP 60 head optional

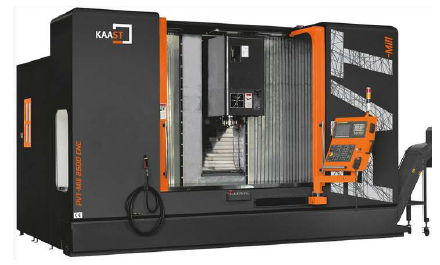

Bed Type VMC

PVT Mill 2500/3000 CNC
Fanuc CNC Oi MD
32 Position Turret
X axis 85 / 125”
Y axis 24 / 28”
Z axis 24”

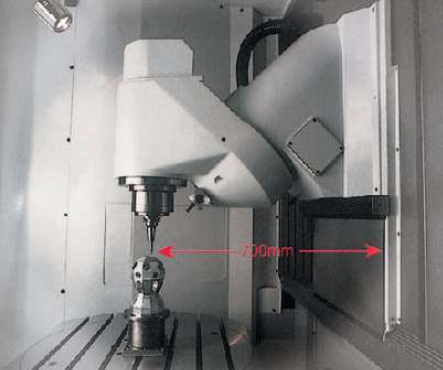

5 Axis VMC

V Mill 1000.5X CNC
Heidenhain iTNC 530
X axis 39”
Y axis 31”
Z axis 27”
1000 x 800 mm table
Max table load 1500 Kg

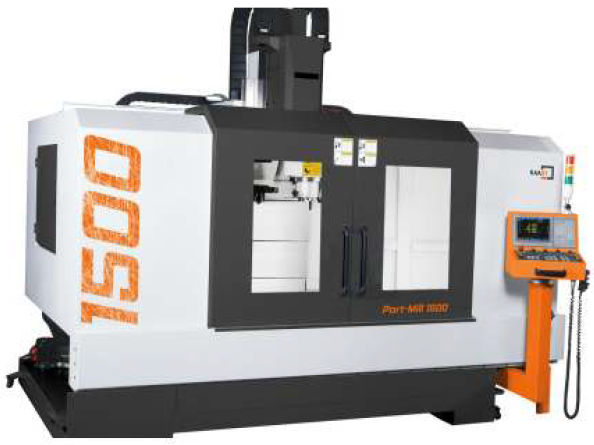

Vertical M/C

Port Mill 550/700/1000/1500/1800/2200
Machine Centers with Heavy Gantry Design
21x23x19 to 86x51x23
Closed Bridge Construction
Extra Heavy Linear Guides

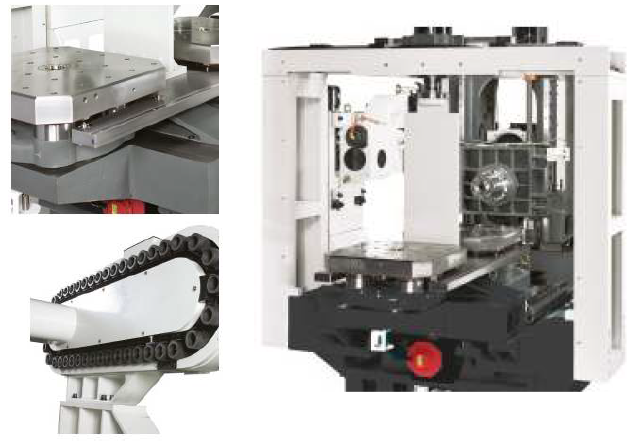

2 Pallet HMC

H Mill 2P 5.5 CNC
X axis 23”
Y axis 20”
Z axis 23”
500 x 500 mm table
Max table load 450 Kg
Auto pallet changer

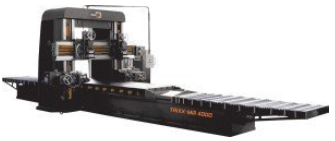

Gantry Type Mill

TriXX-Mill 4000/6000
Stable Gantry Milling Machine
44x157” to 55x236”
Workpiece moves only in X axis
Horizontal Head moves
Perpendicular to Gantry
Vertical Heads move in YZ axes
8000/15000 Kg table load
3 axis digital readout







Gantry Type Mill CNC

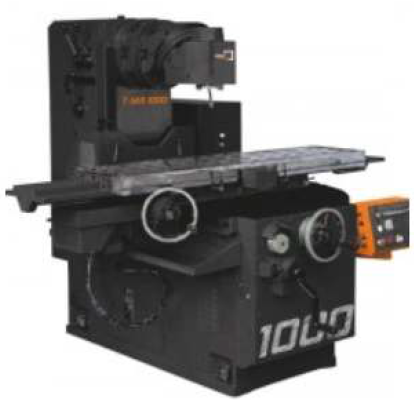

Universal Tool Mill

T Mill 1000/1250/1600/2000
14x59” to 24x102”
High precision mill for tool making
Horizontal and vertical milling
Head swivels in two planes
Max table load 800-1500 Kg

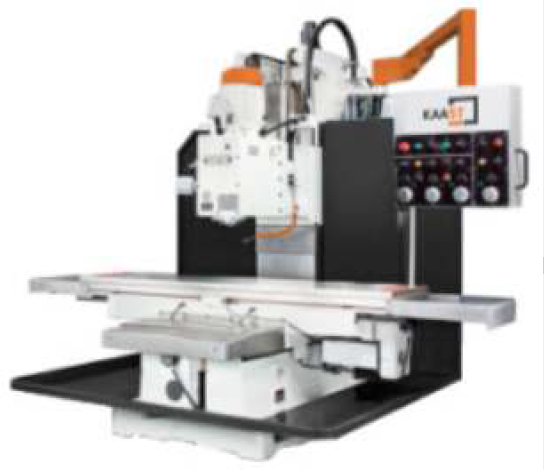

Bed Mill

DMV 250 B / 380 VS / 450 VS /500 VS
Vertical drilling and milling head
Swivel +/- 45 degrees
High grade annealed
Meehanite casting.
50x10” up to 87x20”
NST #40 / NST #50 table

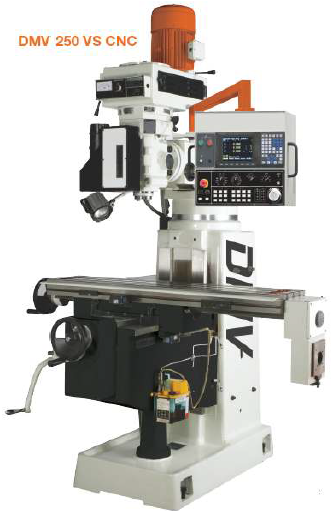

Bed Mill Manual











 Knee Milling Machine

DMV 250 VS / 305 VS
Vertical Spindle
3 axis digital readout
Drill chuck, collet chuck with collets

Milling and Drilling Machine

DMF 30/800 30/1120 40/1320
Vertical and Horizontal Spindle
3 axis digital readout
Drill chuck, collet chuck with collets













Universal Mill

TW-Mill 2.1 / 3.1 / 4.1
12 x 29” to 15 x 31”
3 axis digital readout
SK 40 horizontal arbors
Horizontal milling attachment

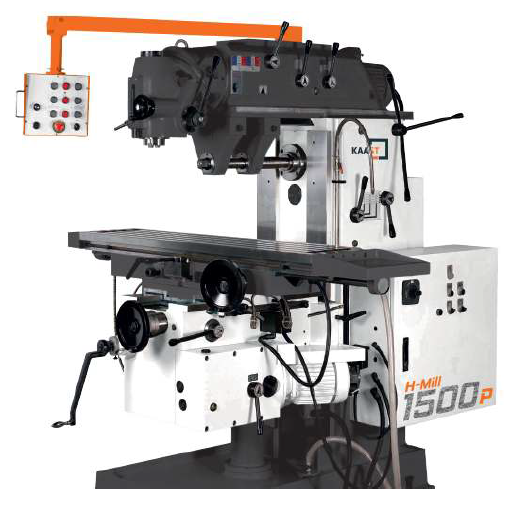

H-Mill 1500 U. P. T/H Mill 1330
H-Mill 1500 T
H-Mill 1500 U
H-Mill 1300 (1500)
