imo-space

imo-space is Imoberdorf's biggest rotary transfer system in terms of  productivity and functional possibilities. Designed on 6 to 20 machining stations with up to 45 or more spindles, the imo-space has enormous  production potential.

The imo-space provides you with a  ready-to-use machining solution, tailored to your specific requirements  and with an enormous range of applications.

The parts feed is  carried out from bar stock, by means of load handling, robot or using  Pick & Place. At the same time, the reproducibility of ± 0.003  millimetres makes the imo-space one of the most precise rotary transfer  machines in the world.

Please contact us if we may be of service

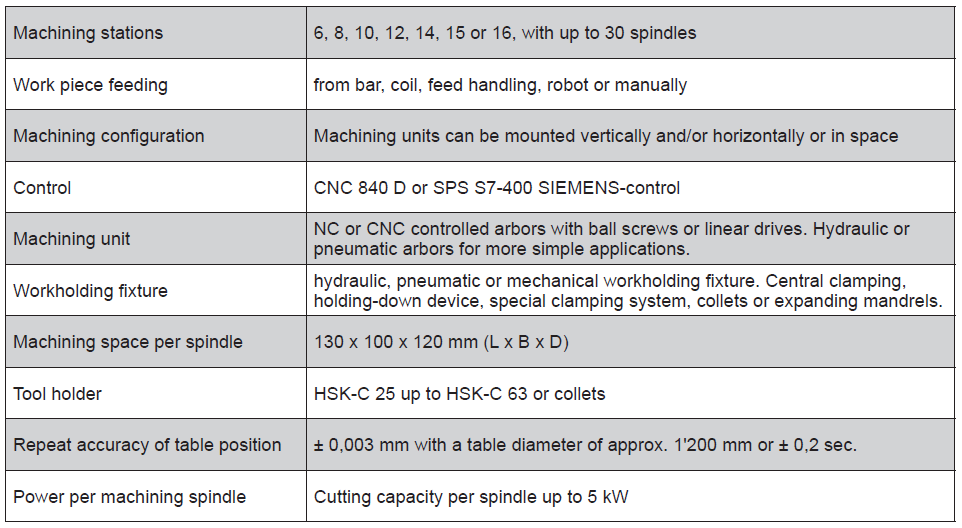

imo-space performance specifications
