Five Models of Caorle Machines

MC640

MC650

Double Ended 3+3 axis machine
20-250 mm diameter, 300 on request
200-1500 mm length
optional length   3000-5000 mm
as well as             7000-12000 mm
ISO 40 mm tool attachment
10 or 20 positions on tool magazine

Double Ended 3+3 axis machine
20-250 mm diameter, 330 on request
200-3000 mm length
optional length
up to 5000 mm as well as
up to 7000 and
up to 12000 mm
ISO 540 mm tool attachment
10 or 20 positions on tool magazine

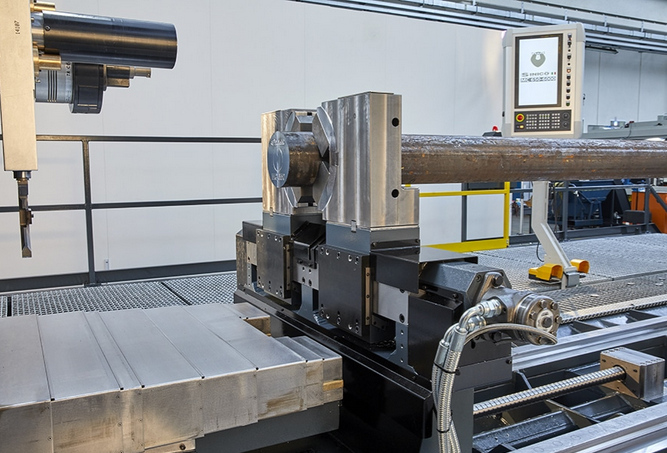

MC650-6000

CL152 U-TRONIC

Double Ended machine with feed-out
head
88-250 mm diameter
950-12500 mm length
machining of large tubes and bars
operations including
turning, facing, boring, thread cutting, taper turning

CL152-12000 U-TRONIC

CL152 TA-CENTER

Double Ended machine radial feed out head and tool changer
50-250 mm diameter
300-500 mm length
machining of large tubes and bars

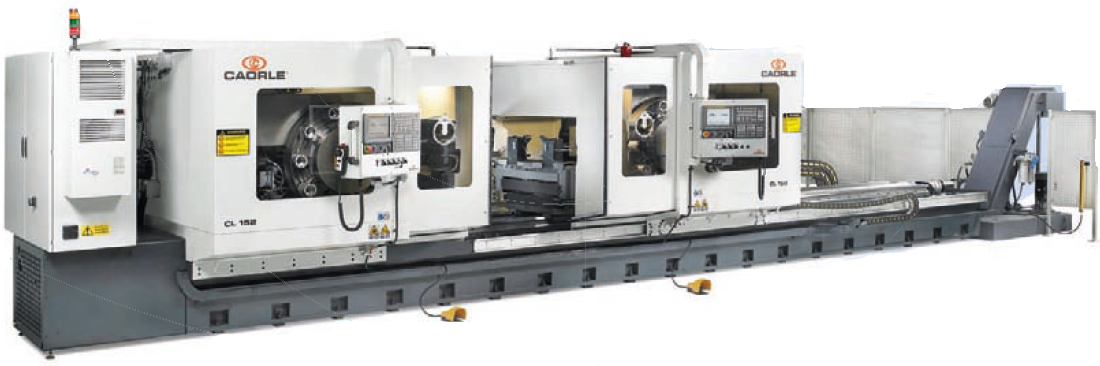

CL152-5000 TA CENTER

CMV 60

Compact, Robust Double Ended
machine with up to three spindles;
1, 2 or 3 per side

-Centering
-Milling
-Tapping

10-100 mm clamping diameter
50-1000 mm length
10 mm minimum milling diameter
80 mm maximum milling diamter
20 mm maximum
drilling diameter  24 mm maximum
 tapping diameter

60 mm maximum drill / tap depth

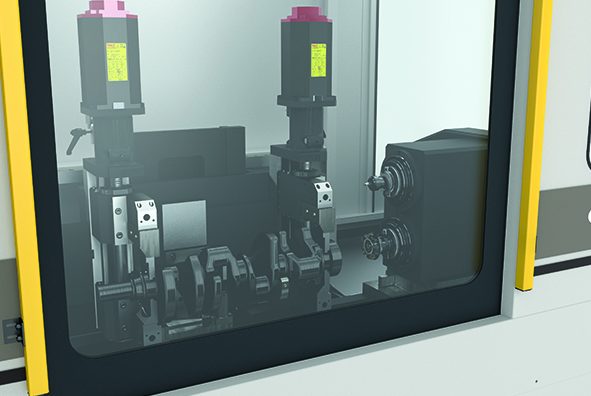

CMV 60 tool zone

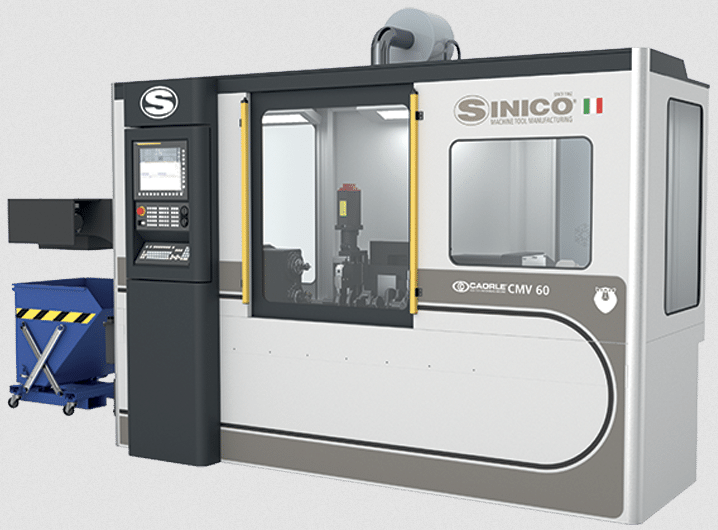

CMV 60

Please contact us if we may be of service regarding Caorle machines from Sinico
