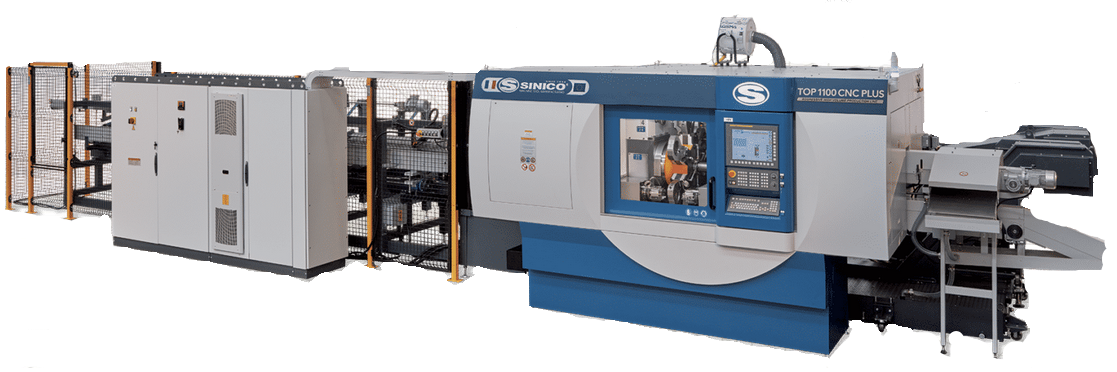

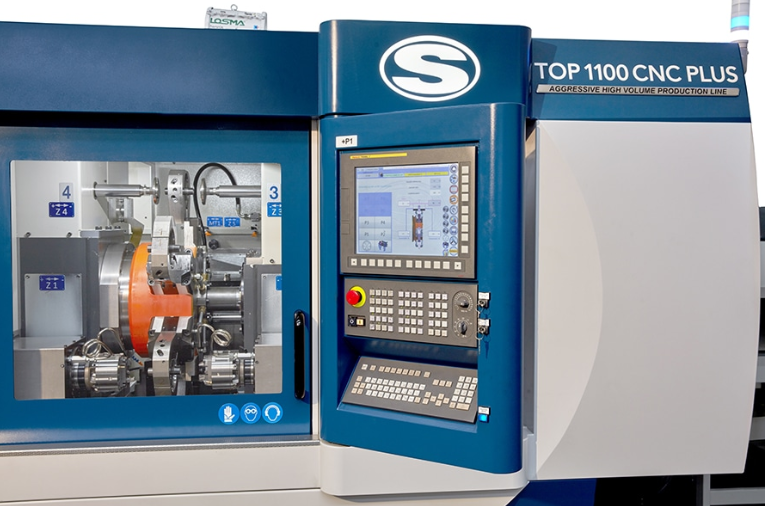

Top 1100 CNC Plus

CNC rotary transfer machine for cutoff and end finishing of tubes.
Tubes are loaded into a bar loader.  A single tube is fed axially into
the index drum.  The tube is sawed to length, then indexed into

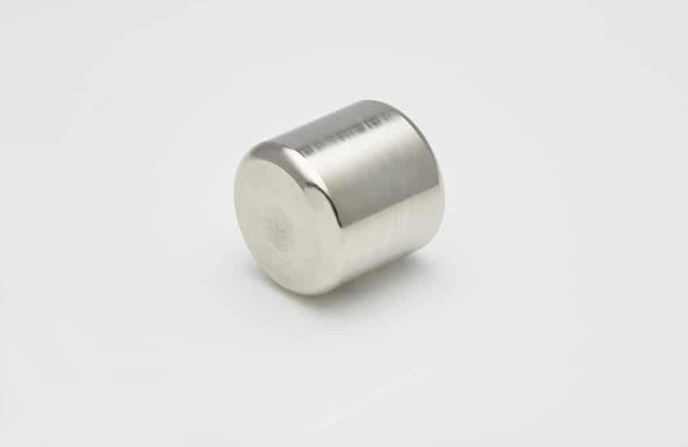

the next station for possible additional operations most often face,
chamfer, then in some cases indexed into another station for 100
percent gauging.  Then the finished workpiece is ejected from the
index drum and normally removed from the machine by conveyor.

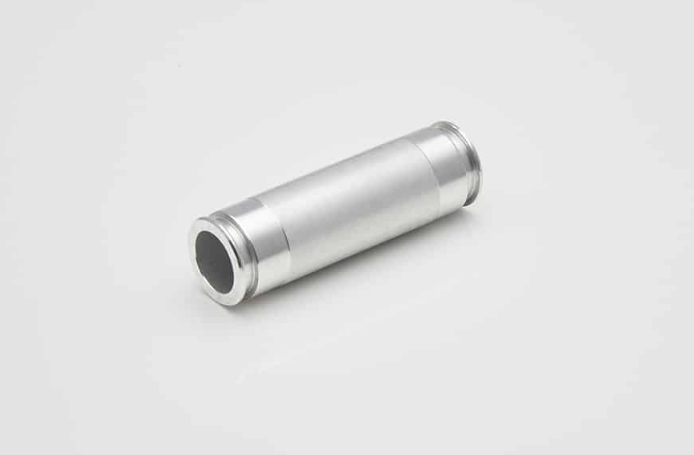

Other possible operations include milling, i.d. or o.d. threading,
puching, turning with tool or work rotations, spinning, etcetera.

Tube input is 3 meter to 6 meter long bars (standard)
Finished tubes 6-95 mm diameter, 10-500 mm length.

Please contact us if we may be of service with Sinico.
