Deep Hole Drilling Machines

Unior produces standard and special Deep hole drilling machines:

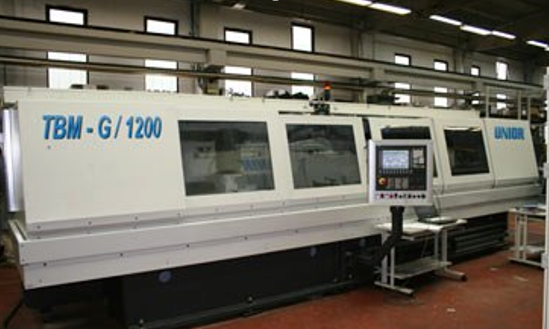

Standard Machine TBM:  3 models to choose from

                                          TBM 15          TBM 30           TBM 60
Drill system                          ELB             ELB/BTA          ELB/BTA
Drill diameter (mm)           2-15              6-30              16-65
Redrill up to (mm)               20                   60                  150
Depth of drill max (mm)   1000              2000              10,000

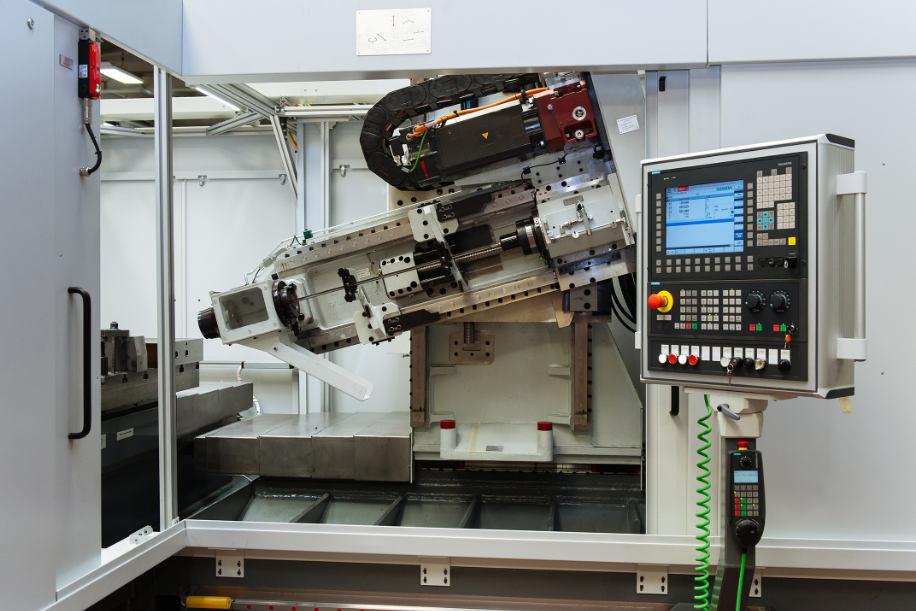

Standard Machine KTBM

Machine with two  plus one axis drilling module and index table: with side and rotary axes.

Machine data (larger sizes considered on request).

Drill system                                      ELB/BTA
Drill diameter (mm)                            4-80
Depth of drill max (mm)                 2300
Milling Tool dia. (mm)                        50
Milling Toolholder                           HSK 63

Table surface (mm)                    2000 x 2000
Maximum load (Kg)                          10,000
X-Axis (mm)                                       3600
Y-Axis (mm)                                       1500
Z-Axis (mm)                                       1000

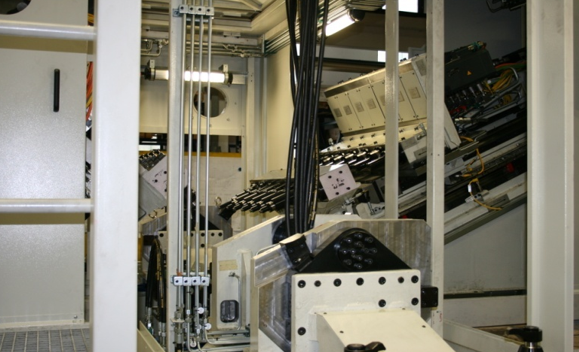

Unior makes special deep hole drilling machines based on the requirements of the customer and the workpiece / family.

Some examples:

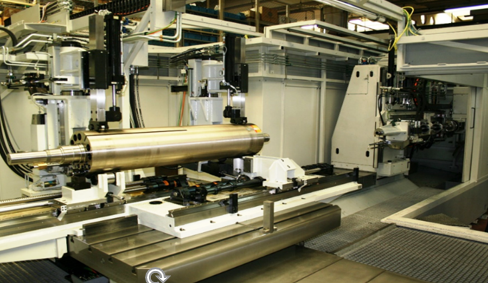

Deep hole drilling of camshaft















Deep hole drilling of rollers for printing

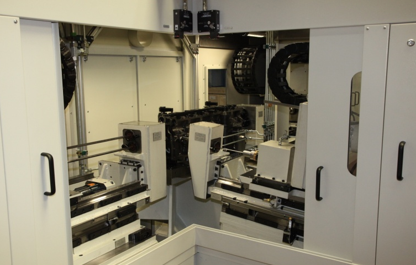

Multibank angular drilling for cylinder heads















Deep drilling from three sides for cylinder head
