Rotary Transfer Machines

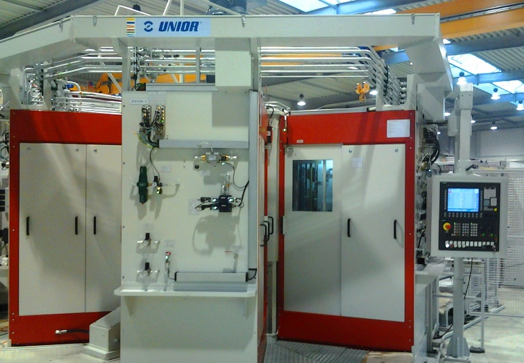

Unior provides flexible rotary transfer machines of the dial
variety for high volume productions.  Dial stations can be
from 2 to 8 positions.  1 or three axes are normal per station
but a fourth and fifth axis can be added as an option.
Workpiece clamping can be changed by robot as an option.
Workpiece loading is done by hand, by gantry or in most
cases by robot.  Tools are HSK 63 or 100 and can be supplied
with a 6 or 8 station revolver or a 20 or 30 station magazine.
Planetary clampings can be NC controlled.

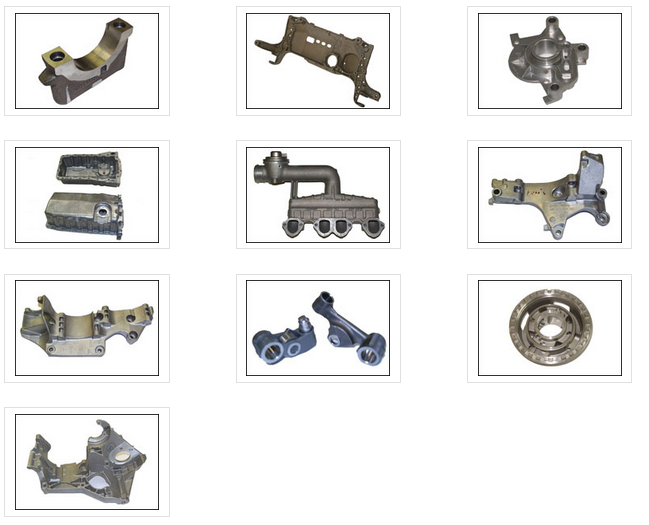

Past productions have included: Crankshaft bearing cap,
Modular aluminum carrier, engine holder, flywheel, holder,
Modular platform swivel bearing carrier, exhaust manifold,
bearing block intake, axial bearing, oil regulating pump,
vaccuum pump housing, connecting rod, planet carrier,
pliers, balancing shaft, cam follower roller, auxiliary frame,
roller rocker, drive shaft, flange shaft, cylinder head cover,
housing, regulater lever, bracket.

Technical data:

Stroke of X axis              400 mm

Stroke of Y axis   up to  1200 mm

Stroke of Z axis               600 mm

Speed of movement       60 m/ min

Axis acceleration           6m/s

Spindle Speed      up to 12,000 RPM

Time of tool change      3 seconds 9000 RPM-0-9000 RPM

Tool Holder                    HS 63 or HSK 100

Please contact us if we may be of service.
