Machining Center RVH

Unior has developed the RVH for machining 1, 2, 3 or 4
workpieces.  The machine has two tool carrying turrets with
HSK 63 or HSK 80 tools.  One machines from the top, and
one from the back.  There are one or two machining areas.
Each may be supplied with a swivel table with one or two rotary tables.  On the version with two machining areas
it is possible to load / unload one side when machining
the other, additionally machining may take place on both
sides, simultaeously.

The turrets may be programmed to machine one part at the
same time or different parts.

Please contact us if we may be of service with the RVH and
Unior.

RVH
Technical Data

Max workpiece
size:

1000x630x800 mm

800 mm single
rotary table

320 mm twin rotary
table

HSK 63 or 80
toolholders

10,000 max. RPM

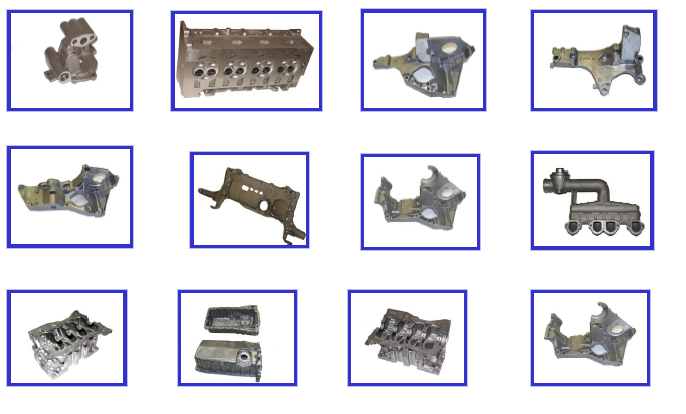

RVH Potential Workpieces
